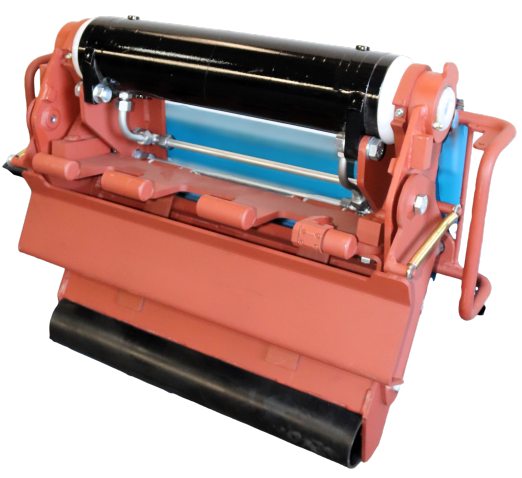

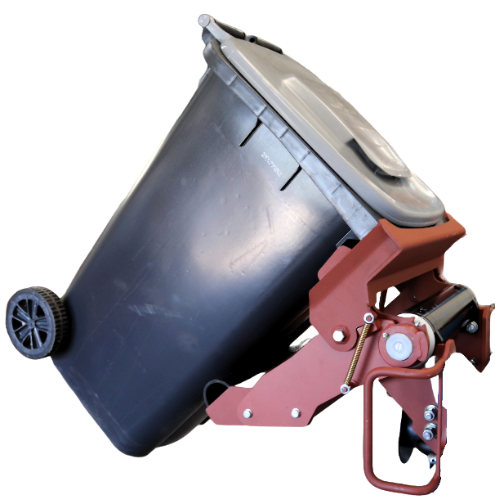

ML150

The ML 150 is a versatile "low-level" lifter. The ML 150 has a patented rotary lift action, which is highly efficient and uses little power from the vehicle's engine.

Benefits:

​

  • BEST for bags and 240 litre bins.

  • It achieves cycle times of 7 to 8 seconds with bins weighing up to 180kg.

  • It is suitable for winched skips

  • A single rotary actuator drives each lifter

  • It is easily removable and transferable. The ML 150 is the only lifter which can be removed or transferred in under two minutes without the use of any tools!


Locally designed and manufactured in South Africa.

Features

  • Highly Compact

​

  • Greater Ground Clearance

​

  • Easily Removeable

​

  • Smooth Bin Emptying

​​

  • Tipping Angle of 45 degrees

​

  • Designed, built and supported in South Africa for our unique local conditions

Specifications

Bin Type
1 X 240 litre per lifter
Cycle Times
6 - 7 seconds
Hydraulic Flow
9 l/min (for 7 seconds cycle time)
Hydraulic Pressure
60 - 90 bar (for 100 - 150 kg)
Lifter Type
Low Level Lifter
Lifting Capacity
1.7 kg per 1 bar pressure (typical bin mass is 100 - 150 kg)
Noise Level
< 72 dBA
Tipping Angle
45 degrees

Note: More than 11 l/min will damage the bins and/or the lifter
